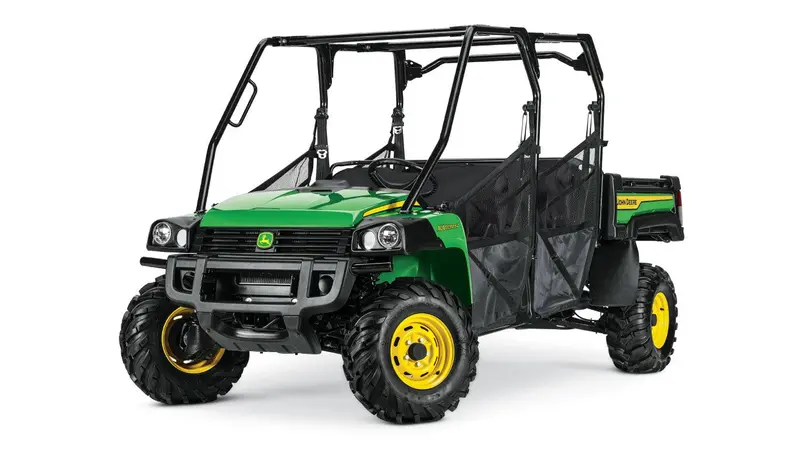

Xuv825M S4 John Deere Crossover Utility Vehicle – Diesel, Compact Design

Description

• Multi-passenger capability for four people
• Easier shifting, with integrated park position
• Electronic switch for instant 4WD engagement
• Assembled in Wisconsin
• Improved power steering for smoother operation

• Specifications

  Key Specs

  Engine power	39* kW 52 hp
  Cargo box dimensions	1143 x 304.8 x 1320 mm 45 x 12 x 52 in.
  Cargo box capacity (weight)	454 kg 1000 lb
  Towing capacity	680 kg 1500 lb
  Front suspension	Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel
  Rear suspension	Fully independent dual A-arm with adjustable coils and sway bar; 228.6 mm (9 in.) of travel
  Final drive	Park, high, low, neutral, reverse transaxle
  Four wheel drive	Dash switch actuated four-wheel drive system with limited slip front differential plus locking rear differential
  Fuel capacity	27.6 L 7.3 U.S. gal.

  Engine

  Type	4-cycle gas, electronic fuel injection (EFI)
  Displacement	812 cc
  Power	39* kW 52 hp
  Cooling system	Liquid

  Drivetrain

  Transmission	Continuously Variable Transmission (CVT) with clutch enclosure
  Final drive	Park, high, low, neutral, reverse transaxle
  Four wheel drive	Dash switch actuated four-wheel drive system with limited slip front differential, plus locking rear differential
  Traction assist	Positive locking, switch actuated rear differential lock
  Descent control	Yes

  Suspension

  Front	Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel
  Rear	Fully independent dual A-arm with adjustable coils and sway bar; 228.6 mm (9 in.) of travel

  Brakes

  Type	Front/rear hydraulic disc with twin piston front calipers
  Park brake	Optional factory installed secondary, hand operated

  Tires / Wheels

  Front	27×9-R14 Maxxis® Bighorn® radials on steel or alloy rims 27×9-R14 Predator hard-surface radials on steel or alloy rims
  Rear	27×11-R14 Maxxis Bighorn radials on steel or alloy rims 27×11-R14 Predator hard-surface radials on steel or alloy rims

  Dimensions / Capacities

  Wheelbase	2895.6 mm 114 in.
  Operating weight (includes fuel/fluids)	953 kg 2101 lb
  Length	3921 mm 154 in.
  Width	1574 mm 62 in.
  Height	1903 mm 75 in.
  Tread centers	1305 mm 51.4 in.
  Ground clearance	280 mm 11 in.
  Fuel capacity	27.6 L 7.3 U.S. gal.
  Cargo box dimensions	1143 x 304.8 x 1320 mm 45 x 12 x 52 in.
  Cargo box capacity (weight)	454 kg 1000 lb
  Payload capacity	592 kg 1305 lb
  Towing capacity	680 kg 1500 lb
  Hitch	Standard receiver: 5.1 cm 2 in.

  Features

  Color	Green and yellow, camouflage, olive and black
  Power steering	Yes
  Battery / Alternator / Power port	480 CCA 85 amp @ 6000 rpm, regulated, 1020 watts
  Instrumentation	Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light)
  Storage	Two cup holders, under hood, glovebox, under rear seat
  Seating	Front and rear bench
  Headlights
