Description
The PocketJig400™ by Milescraft is a professional-grade pocket hole kit designed for precision, durability, and ease of use. With its solid aluminum body, hardened steel drill guides, and portable design, this jig delivers clean, repeatable pocket hole joinery for any woodworking project. Whether in the workshop or on the jobsite, the PocketJig400™ ensures a fast, strong assembly every time.
- Solid aluminum body reduces flex and increases accuracy
- Adjustable hardened steel bushings allow precise spacing and depth control
- Built-in storage drawer for bits, screws, and plugs with thickness reference
- Clamp wall detaches for mobile repairs and tight spaces
- Includes bit, driver, depth stop, screws, plugs, and hex key
Technical Data
| Main Body Material | Aluminum |
| Drill Guide Material | Hardened Steel |
| Drill Guide Sizing | 3/8″ |
| Board Size Range | 1/2″ to 1-1/2″ |
| Bushing Spacing | 3/4″ to 3″ |
Includes

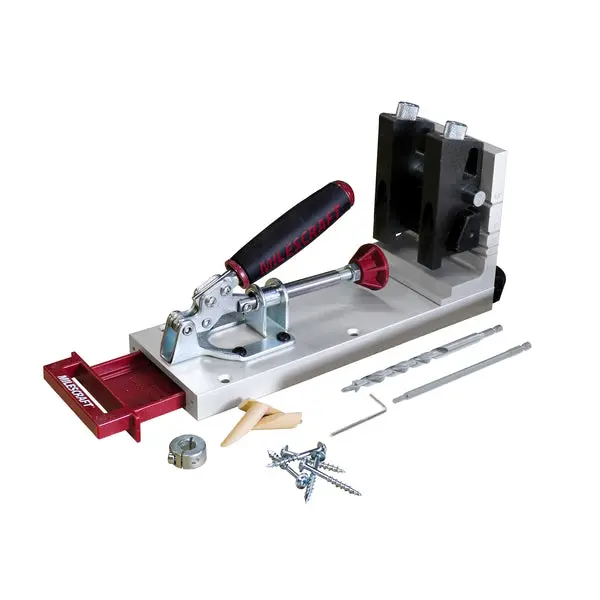

- Main Jig Body with Toggle Clamp
- Removable L-shaped Clamping Wall
- 2× Solid Steel Drill Guides
- 3/8″ Pocket Hole Bit
- 6″ T20 Magnetic Driver
- 3/8″ Split-Ring Depth Stop
- 10× 1″ Coarse Pocket Screws
- 10× 1.25″ Coarse Pocket Screws
- 10× 1.25″ Fine Pocket Screws
- 10× 1.5″ Coarse Pocket Screws
- 10× 2″ Coarse Pocket Screws
- 10× 2.5″ Coarse Pocket Screws
- 10× 3/8″ Pocket Plugs
- 3mm Hex Key
